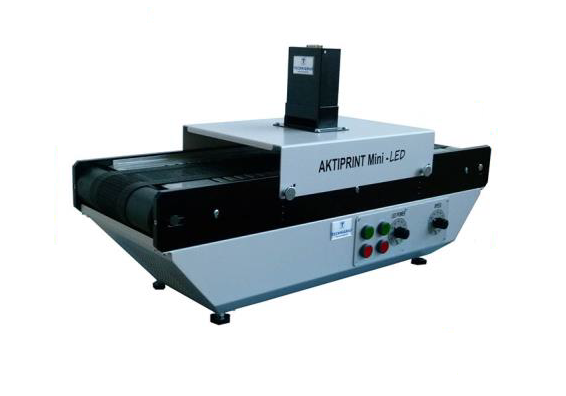

| AKTIPRINT MINI LED |
- UV table-top dryer with Light Emitting Diodes (LED) 395 nm
- UV LED requires no run-up phase and no cool-down phase
- Conveyor belt width up to 17cm
This conveyor unit is perfect for testing, R & D as well as small production applications on flat materials. It comes with fitted Light Emitting Diodes (LED) at 395 nm. This will cure suitable UV LED ink, varnishes and adhesives. Other wavelengths, conveyor speeds and widths are also possible as required by the customer.
| Technical Details | |
| UV LED Wavelength | 395 nm (other wave lengths on request) |
| UV LED Power | max. 16 W/cm², infinitely variable |
| Conveyor Speed | 3-20 m/min., variable |
| Conveyor Width | 11 respectively 17 cm |
| Tunnel Height | 12 – 50 mm, easily manual adjustable |
| Additional |
Accessories/Options (available on request)
|
Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV conveyor units would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
