AKTIPRINT MINI XL DUO

  • UV table-top unit with curing combination UV LED and UV tube
  • Other wave lengths can be supplied on customer request
  • 25cm conveyor belt width and adjustable tunnel height of 50 mm

The conveyor is air cooled and small enough for table-top applications. It combines UV LED and conventional UV. This makes it suitable for the curing of special UV inks, varnishes and adhesives. It is well suited to testing, R & D as well as small production applications such as flat materials or even moulded parts. Our conveyors can be customized to suit customer requirements. For example, this may mean the dimensions or the specification of the UV Lamps or wavelength of the UV LED.

 Technical Details
 UV LED   Wavelength  395 nm (other wave lengths on request)
 UV LED Power  16 W/cm², infinitely variable (other powers on request)
 Conveyor Speed  3-20 m/min. (other speeds on request), variable
 Conveyor Width  25 cm
 Tunnel Height  adjustable in steps up to approx. 50 mm
 Additional

 Accessories/Options (available on request)

  • Other conveyor belt speeds
  • Other wave lengths (spectra): e.g. 365 nm (8 W/cm²), 385 nm (16 W/cm²)
  • Ozone free tube and special spectra
  • Control for belt stoppage (only in combination with dig. Conveyor belt speed indicator)


Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV conveyor units would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.

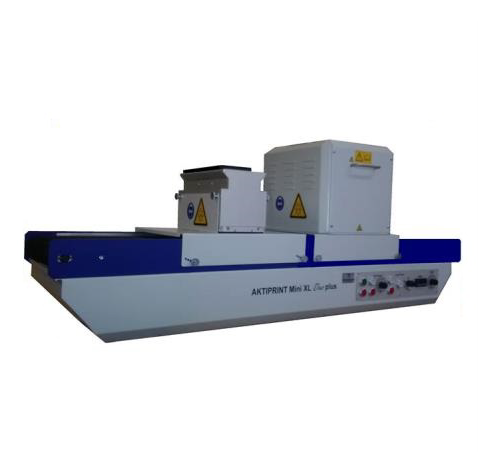

Product Image
