- Extensive range of solid state power supplies for UV lamps
- UL certified (UL 1029 (5th edition) & RoHS compliant
- Designed to drive UV lamps in the various fields of industry

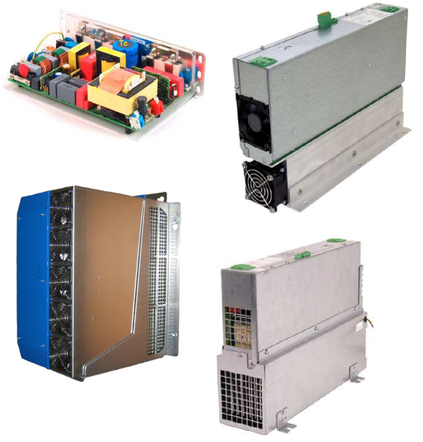

The HLP range of UV lamp drivers is suitable for medium pressure lamps from 186 W to 11 kW. Like all of our electronic power supplies, the devices are all CE certified and stepless adjustable. Please see below some of the key technical data for the devices.
| Model |
Output power |
Mains Voltage |
Lamp Operating Voltage |
Lamp Operating Current |
| HLP 6.2-240 |
186 - 620 W |
AC 180 to 305 V |
100 to 200 V |
up to 6.2 A |
| HLP 18-500 |
400 - 1800 W |
90 to 264 V |
150 to 500 V (nominal) |
up to max. 8.5 A continuous |
| HLP 30-500 |
0.4 - 3 kW |
187 to 305 V |
150 to 500 V (nominal) |
max. 8.5 A |
| HLP 115-1500 |
3.5 - 11.5 kW |
376 to 509 V |
900 to 1,350 V (nominal) |
up to 10 A |
Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV electronic power supplies would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
HLP 6.2-190UL Datasheet
