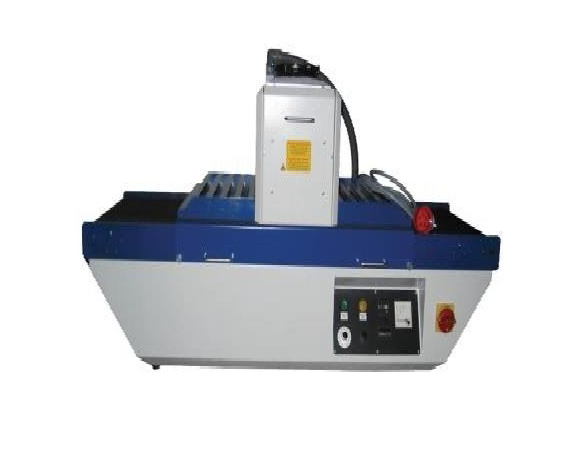

| AKTIPRINT T/e |
- Ready to use, compact table-top unit with air cooling
- Up to 52cm conveyor belt width
- 12 – 80 mm easily manual adjustable tunnel height
This conveyor is a compact stationary unit used to cure UV sensitive inks, varnishes and adhesives. It is suited to applications such as medium prints onto flat materials or even moulded parts. These may include paper, plastic, glass, metal or PCB boards, on small and medium prints on flat material and moulded parts like paper, plastic, glass, metal as well as PCB boards. Our conveyors can be customized to suit customer requirements. For example, this may mean the dimensions or the specification of the UV lamps.
| Technical Details | |
| UV Lamps | T/e 28: max. 160 W/cm, T/e 40: max. 140 W/cm, T/e 50: max. 120 W/cm |
| UV Lamp Spectrum | 200 – 400 nm (ozone free tubes or special spectra on request) |
| Conveyor Speed | 5-20 m/min., variable (other conveyor belt speeds on request) |
| Conveyor Width | T/e 28: 30 cm, T/e 40: 42 cm, T/e 50: 52 cm |
| Tunnel Height | 12 – 80 mm, manual adjustable |
| Additional |
Accessories/Options (available on request) Higher lamp power; tubes ozone free and/or special spectrum; digital conveyor belt speed indicator; motorized adjustable tunnel height; for bigger tunnel height: protection against rays inlet/outlet; assemble of waste air; inlet control (energy saving), different conveyor belt speeds. |
Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV conveyor units would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
