• Measurement of UV intensity and dose
• Adjustable measuring time
• Software with numerous functions

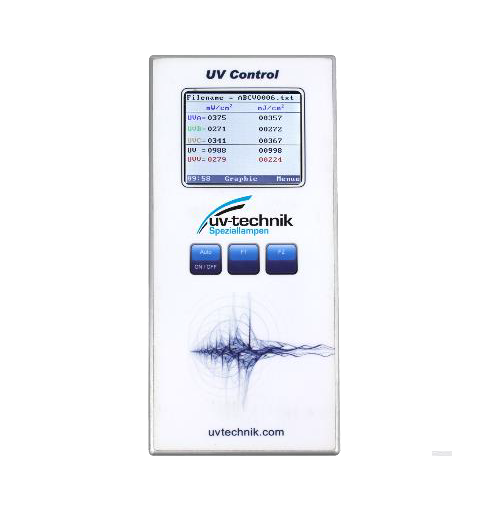

The UV Control is a UV integrator for the measurement of UV intensity, dose and temperature (see specific models). This Microprocessor Integrator is a UV multi-channel-measuring instrument suited to UV curing applications. The devices have multiple UV sensors making it able to measure, record and display the peak UV intensity for each UV band individually. In addition, this UV Integrator calculates the UV dosage of the UV energy supplied during the time of exposure of one measuring cycle for each UV bandwidth. Our range of measuring devices conform with CE and UKCA. Features include:

• Intensity in mW + Dose in mJ for UV-A, -B -C, VIS, UV-LED (UV Control 4C LED)
• Full UV intensity in mW/cm² + Dose in mJ/cm²
• Temperature in °C / °F (UV Control 4CT)
• Storage of all measured values on SD card
• Colour display for graphical and numerical display of the measured values
• PC software with many user-friendly features

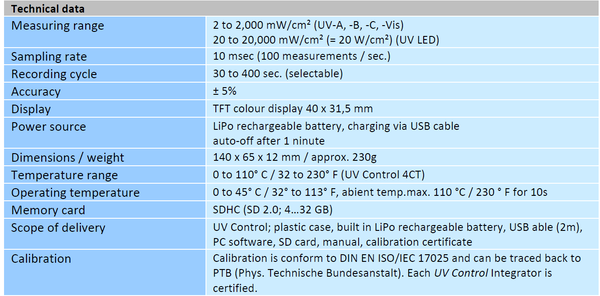

Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV measuring device & calibration would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
