- Electronic Power Supply for UV lamps up to 2000 W
- An external igniter allows for longer cable lengths
- Power adjustment via DC 0...10 V or 4…20 mA

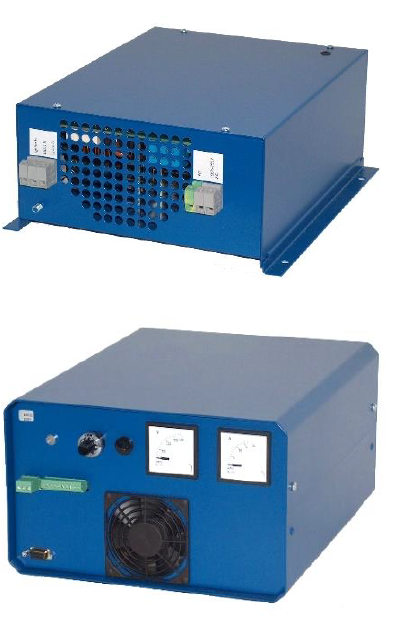

The TEP range of UV lamp drivers is suitable for medium pressure lamps up to 2 kW. They are often used for curing applications. The device has a stepless power adjustment with an external igniter that allow for longer cable lengths as required by the customer. There are two versions of the device, the standard TEP 20-S and a table-top version, the TEP 20-T. Please see below some of the key technical data for the devices.
| Model |
Output power |
Mains Voltage |
Lamp Operating Voltage |
Lamp Operating Current |
| TEP 20-S |
approx. 0.3 - 2 kW |
196 to 249 V |
100 to 300 V (nominal value) |
approx. 12 to 9.5 A |
| TEP 20-T |
approx. 0.3 - 2 kW |
196 to 249 V |
100 to 300 V (nominal value) |
approx. 12 to 9.5 A |
Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV electronic power supplies would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
TEP 20-S Datasheet
