• Online UV measurement (continuous measuring)
• Relative UV measurement (tracking UV lamp ageing)
• Versions for UVA, UVB, UVC, UV-VIS, UV-LED

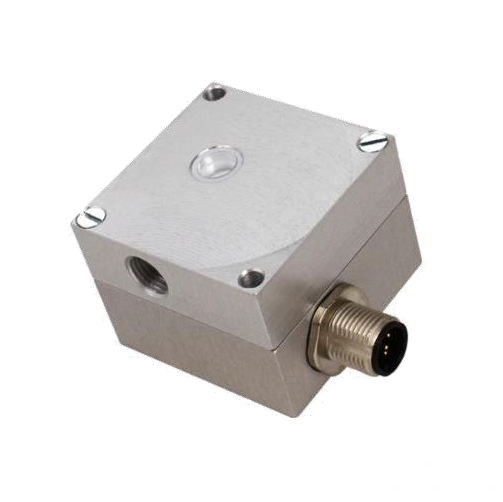

The QWO is a measuring device developed as a solution for applications that require continuous measuring of UV. This allows for ongoing monitoring of UV Lamps installed in curing processes. The out is in the form of a proportional output signal (DC 0 - 10 V) fed to either a DV voltmeter or a PLC. The device is available in different versions depending on customer requirements. These will be calibrated to the wavelength of interest. There is an alternative version which has a quartz rod for applications where spatial restrictions require an alternative means of accessing the lamp with the UV sensor - See QSO 3. Our range of measuring devices conform with CE and UKCA.

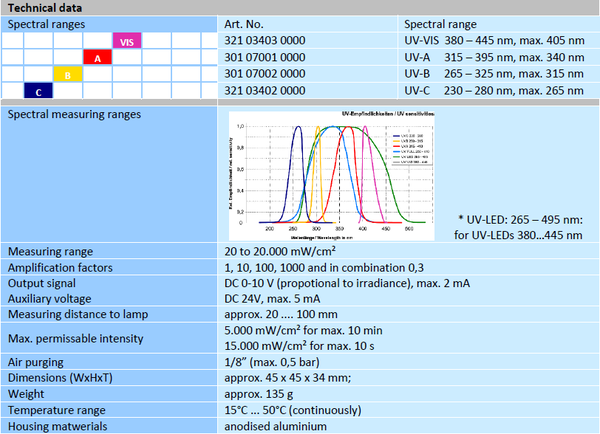

Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV measuring device & calibration would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
