- Step less adjustable solid state power supplies for UV lamps
- Simple installation with less wiring & no external igniter required
- Output protected against ground faults, overload & short circuits

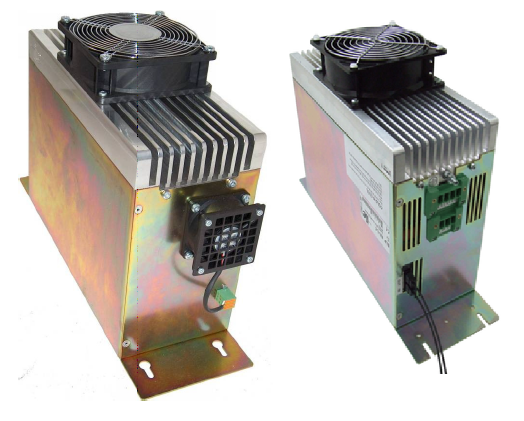

The BLP range of electronic power supplies is a reliable range of power supplies used in curing applications all over the world. Within the range there are several devices with varying specifications. We hold stock of this popular range of devices and can ship globally. The range includes:
| Model |
Output power |
Mains Voltage |
Lamp Operating Voltage |
Lamp Operating Current |
| BLP 26 |
260 - 2.6 kW |
200 to 240 V |
100 to 450 V |
approx. 2 to 18 A |
| BLP 59-S |
600 - 6 kW |
376 to 509 V |
100 to 450 V |
approx. 1.5 to 15 A |
| BLP 75 |
750 - 7.5 kW |
376 to 509 V |
100 to 450 V |
approx. 1.8 to 18 A |
| BLP 75-8kW |
800 - 8 kW |
376 to 509 V |
100 to 450 V |
approx. 1.8 to 18 A |
| BLP 79-Pulse |
900 - 7.5 kW (9 kW pulse) |
376 to 509 V |
100 to 450 V |
approx. 1.8 to 18 A |
| BLP 60-LC |
1200 - 6 kW |
3x 376 - 3x 509 V |
100 to 450 V |
approx. 2 to 18 A |
Please note that we now produce an updated eUV compact range equivalent version of the BLP 59 and BLP 75 models that offers a simple exchange for a modern, efficient version. Their mounting length as well as their control logic and connection plugs are identical to those of the BLP. This makes it easy to replace the BLP units without interfering with the signal and control logic. Please see here for more information.
Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV electronic power supplies would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
BLP 26 Datasheet
