• UV intensity quartz rod sensor
• Designed for short-time measurements for curing applications
• Values can be displayed on the handheld HI 1 (sold separately)

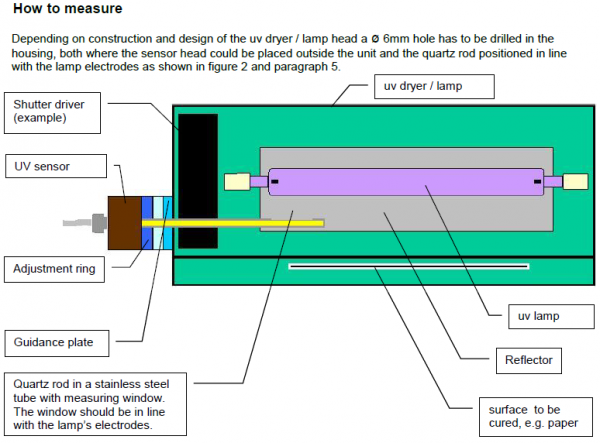

The TS 1 is a quartz rod UV intensity sensor. This instrument is particularly useful in a continuous curing environment where access can be achieved via a keyhole or inspection window. Measurements are read by use in combination with of our handheld meter, the HI 1. This unit provides accurate reading of UV Vis, A B or C wavelengths. The probe is inserted into the area where the UV intensity is to be measured, and a direct readout in MW/cm² can be seen on the digital display of the HI 1. The device benefits from a number of advantages, including:

• Easy to use UV measurement device
• Multiple calibration are available: UV-C, UV-B, UV-A, UV-VIS, UV-LED and full UV
• Mounting plate and guidance place included to ensure a consistent measuring location
• The device calibration is stored in the intelligent sensor plug
• The quartz rod is protected by a stainless steel tube

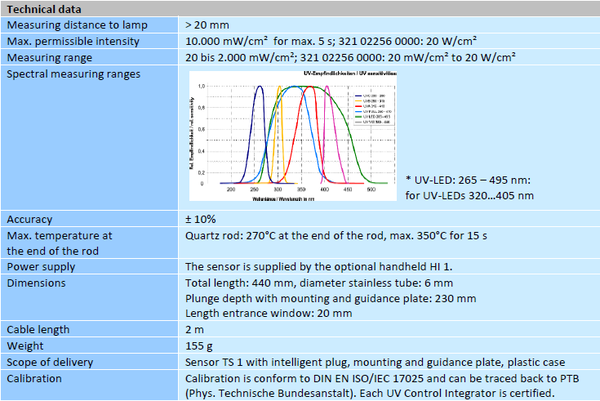

Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our UV measuring device & calibration would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
