- Mobile UV floodlight for curing applications
- Iron (Fe), mercury (Hg) or gallium (Ga) lamp options
- Optional filters (eg black filter) for fluorescence & material testing

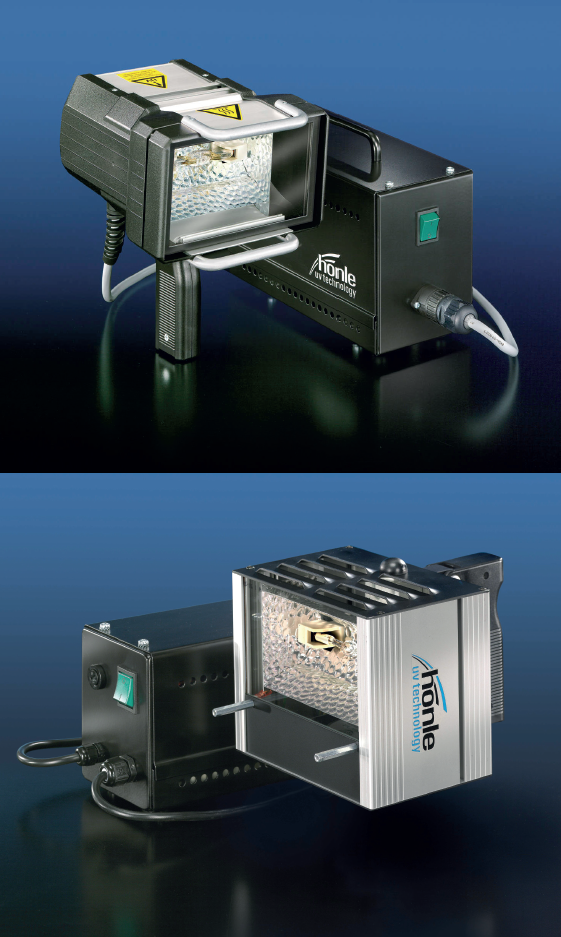

The UVAHAND range from Hönle are mobile handheld UV curing devices containing conventional UV lamps. There are two models available, the UVAHAND 100 and UVAHAND 250. The table below offers a technical summary of each. Please also see below the downloadable datasheets for this handheld UV curing device and contact us for sales and technical support. uv-technik international is a subsidiary of Hönle Group. You may contact us for all technical and sales enquiries in relation to this range of products.
| Model |
Dimensions / Weight |
Lamp Power |
Applications |
| UVAHAND 100 |
230 x 160 x 160 mm (Lamp unit), 1.5 Kg |
100 W |
- Curing of UV reactive adhesives and pottants in the glass, plastics and metal.
- Curing of UV reactive pottants for electric and electronic components
- Manufacturing and repairing of plastic parts with UV reactive polyester resins
|
| UVAHAND 250 |
150 x 85 mm (Output window), 1.9 Kg |
250 W |
- Curing of UV reactive adhesives when joining glass, plastics, and metals
- Curing of UV reactive compounds on electrical and electronic components
- Manufacturing and repair of plastic parts with UV curing polyester resins
|
Need help deciding? Contact our technical team on +44 (0)1582 805410 or email info@uv-technik.co.uk for advice about which of our handheld UV curing devices would be suitable for your requirements. Please also see the downloadable information located on this page for further technical data about this product.
UVAHAND 100 Datasheet
